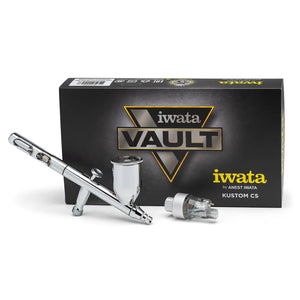

Iwata Kustom Eclipse CS Vault Edition

Iwata Kustom Eclipse Vault – Limited Release Gravity Feed Airbrush

The Iwata Kustom Eclipse Vault is a gravity-feed dual-action airbrush from the exclusive Iwata Vault Collection – a limited series of rare and reissued special models. This version is a modern evolution of the popular Eclipse CS and offers the high versatility for which the Eclipse series has been valued for years.

High flow rate & wide material compatibility

As part of the Eclipse Series , the Kustom Eclipse Vault delivers a high paint flow that requires minimal thinning, even with metallics, pearls, and basecoats . Its spray pattern ranges from controlled fine lines to broad coverage – ideal for custom painters, model makers, and illustrators.

Large 15 ml cup & workflow-optimized design

With a generous 0.5 oz / 15 ml paint cup including lid, the airbrush is ideal for medium to large areas – without constant refilling. The raised main lever ensures maximum control and smooth application, while the rapid access handle significantly speeds up maintenance.

Double cutaway openings: faster, safer, more efficient

• Removing clogs: The cutaway openings allow you to quickly withdraw the needle and loosen ink buildup inside – especially helpful with thicker or metallic inks.
• Needle cleaning without risk: The needle can be quickly removed and cleaned during long sessions without removing the rear handle. This protects the needle should the airbrush be dropped.

Iwata-typical precision

The series uses a compression fit nozzle – tool-free installation and easy cleaning. The spring-steel needle is break-resistant, and the PTFE needle packings are durable and solvent-resistant. Also included are:

• Head Cap Spanner
• Iwata Lube
• Pistol-Grip Moisture Filter for dry, clean air
• Increased main lever for maximum fine control

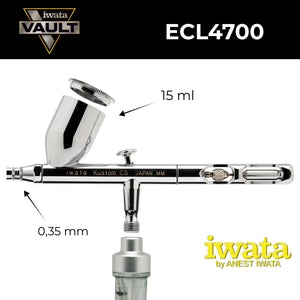

Technical data

• Series: Iwata Vault / Eclipse Series
• Spray pattern: Fine to broad
• Nozzle/Needle: High flow rate typical of Eclipse (0.35–0.5 mm characteristic)
• Feeding: Gravity Feed
• Paint cup: 15 ml with lid
• Action: Dual
• Needle packings: PTFE, solvent-resistant
• Special features: Rapid Access Handle, double cutaway, increased leverage mechanism

Iwata Kustom Eclipse Vault – limited edition, modernized and engineered for maximum control and versatility.
